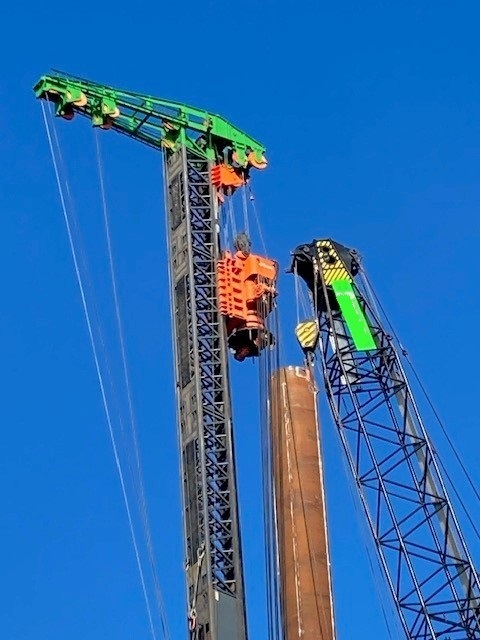

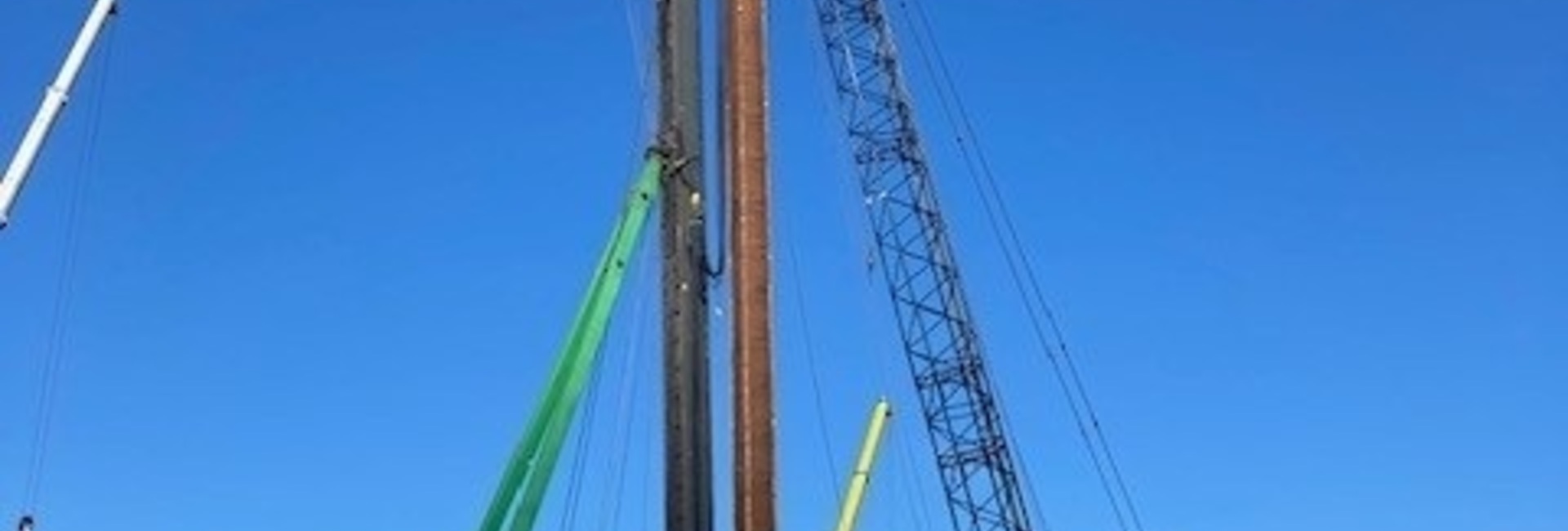

Used Sennebogen 6100-XLR-2 piling/ drilling rig

description

Capacities

• Pull force according NEN: 120 ton
• Leader length 52m (max)
• Drill tube length (under the motor) 48m

Weights

• Transport weight 89,4 ton
• Track frames (per 2) 28 ton
• Ballast 32 ton
• Leader 23,7 ton
• Operational weight (excl. drill tube/ motor) 178,43 ton

Dimensions

• Transport width 3816mm
• Transport height 4000mm
• Extracted width tracks 6100mm
• Tracks length (sprocket-Idler heart) 6050mm
• Track shoe width 900mm

Engine power

• 354kW
• 28 liter/ hour fuel usage

Operation

• Max. operational wind force 8 Bf

Leader

• Foot1,8m, Foot insert 8,8m, Insert 1 12m, Insert 2 12m, Insert 3 6m, Insert 4 6m, Insert 6 4

Capacities

• Position backwards 1:2, Position foreward 1:3, Correction sidewards 1:20

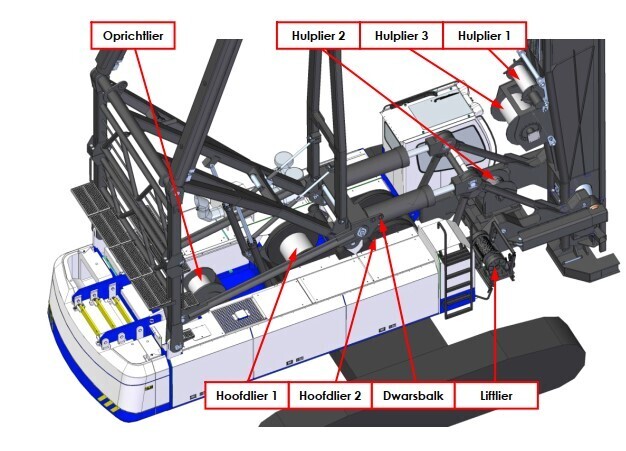

• Front support winch 40 ton, back main winch 1 20 ton, main winch 2 120 ton, hammer winch 30 ton, hose winch 2,3 ton, rebar net winch 7,5 ton, help winch 20 ton, pull down winch 35 ton, lift winch 0,9ton
• drive speed 0-1,4 KM/uur

Diesel engine

• Caterpillar 9.3 Stage-5 (new)
• 354kW/ 1800 TPM
• Elektric system 24 Volt DC
